Washing sole machine

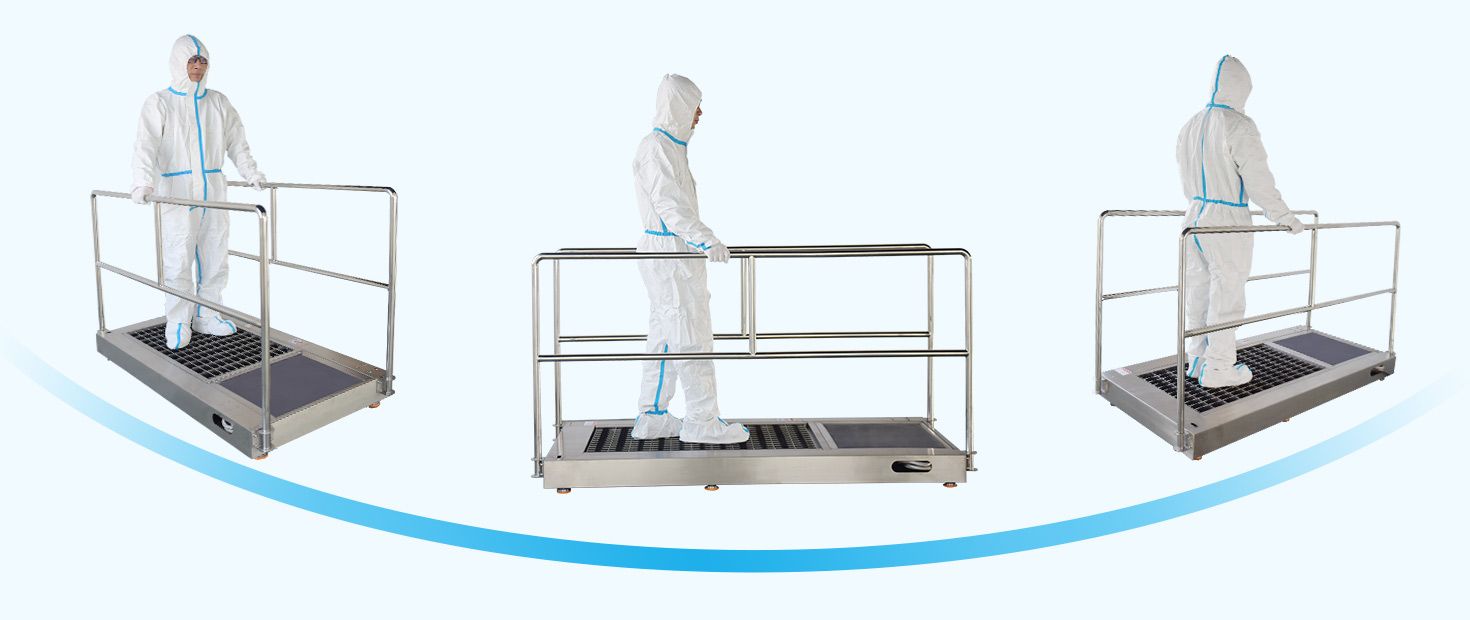

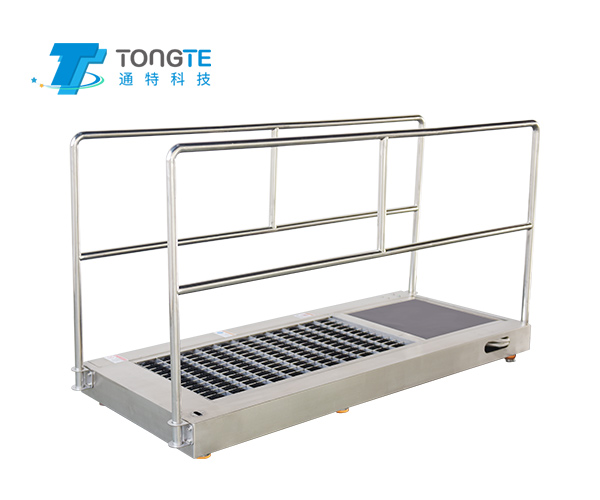

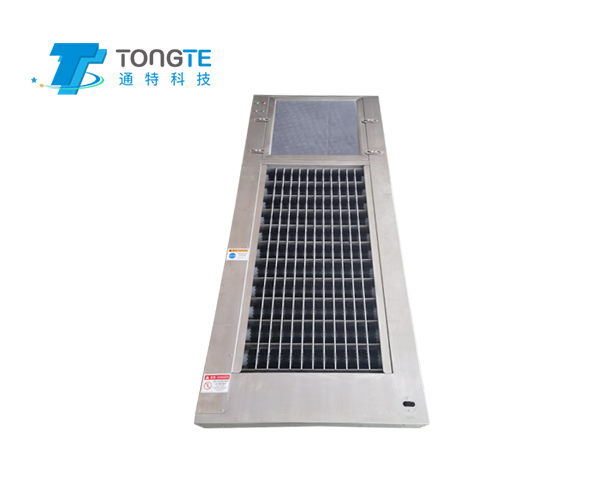

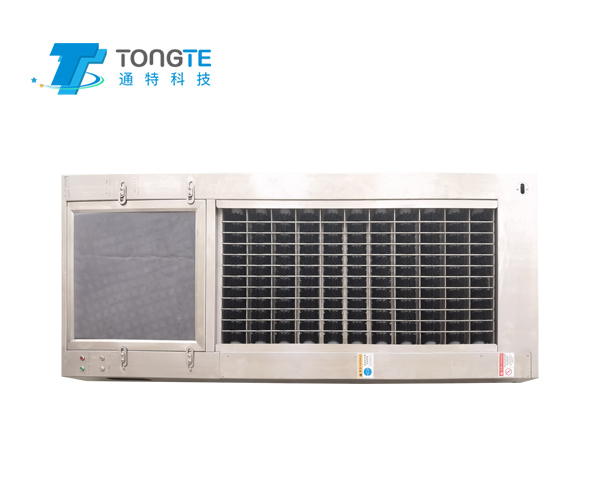

360°automatic sole cleaning machine ST6-Wash type

Sole cleaning machine adopts water roller brush design,the main body of the equipment is made of SUS304 stainless steel.Personnel through the cleaning area,the human body induction triggered motor to drive the roller brush to clean the soles,stay 2-3 seconds can  effectively remove the dust particles and hair attached to the soles,and the sewage s discharged through the floor drain.The booster  pump forcefully washes the surface sediment,saving personnel manual cleaning.PLC integrated control system,multiple overflow preven- tion.

15021179111
Do you have the following difficulties?

The sticky dust pad has poor cleaning efficiency and is prone to cross contamination, resulting in high usage costs.

Dust and bacteria adhere to the surface, and ordinary insoles cannot solve the problem.

Wearing shoe covers is troublesome and easy to damage.

Manual cleaning is time-consuming and labor-intensive, resulting in increased costs.

Tongte Clean Sole Cleaning Machine Helps You Solve Problems

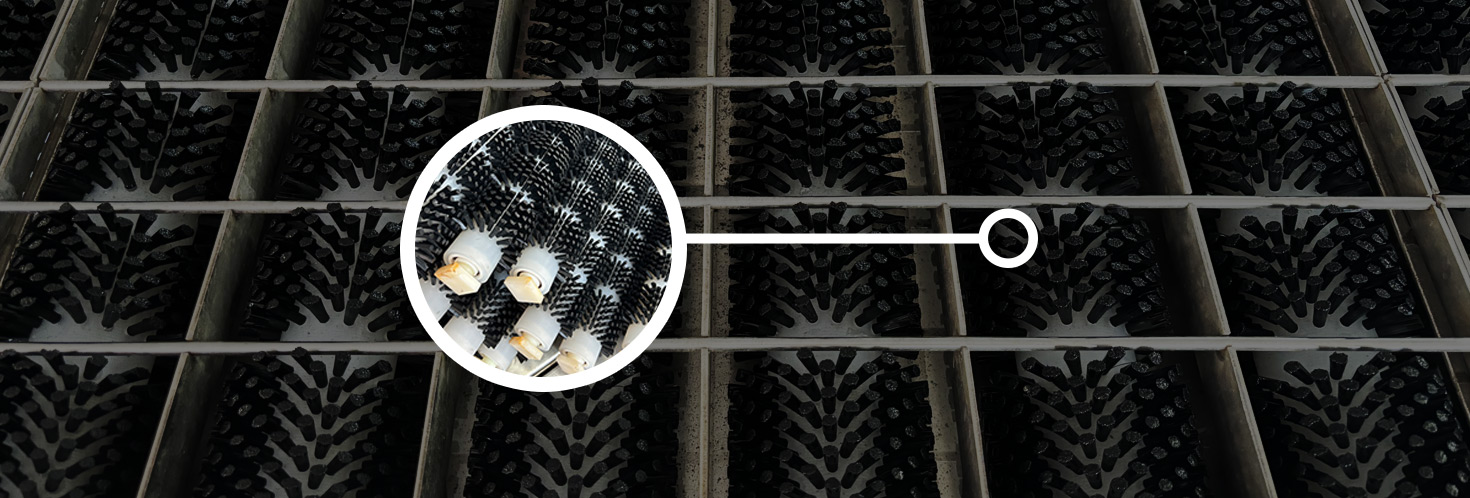

7mm drum nylon brushEasy to replace, 360 ° fully automatic rotation for convenient and fast cleaning
Better effect than ordinary brushes, lower consumption cost

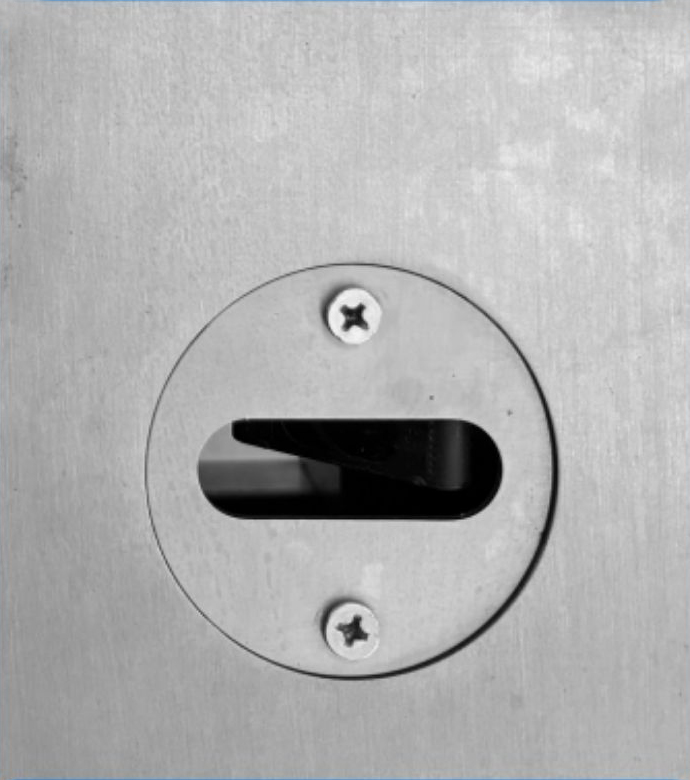

  • Infrared sensor

    Triggered when a person passes by, it automatically works.

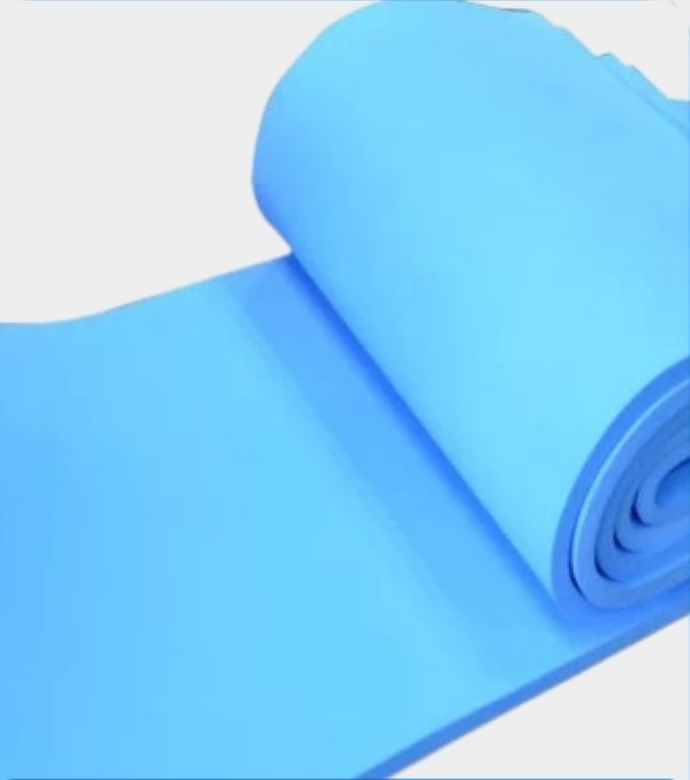

  • High density absorbent cotton

    Walk past to absorb water stains from the soles of the shoes

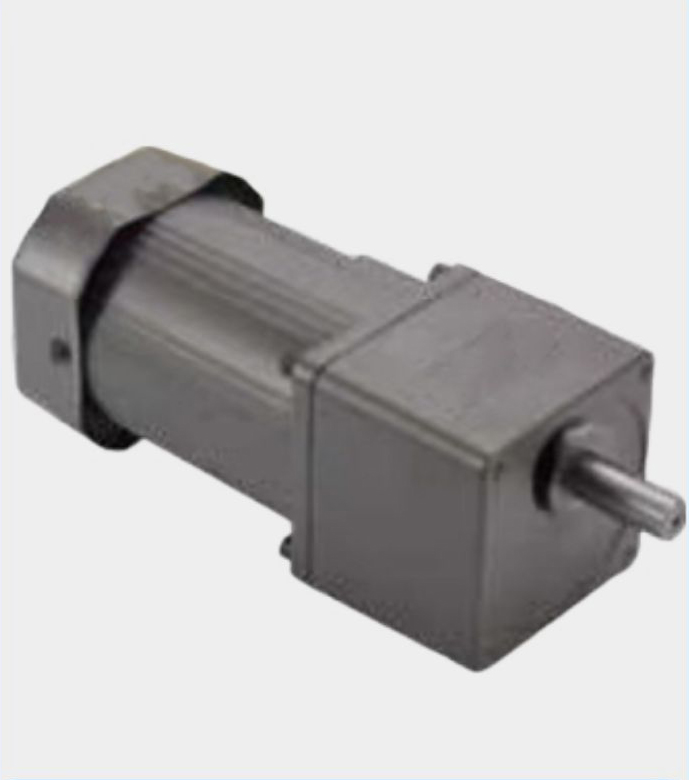

  • High power and powerful motor

    Greater torque, stronger power, more stable and durable operation

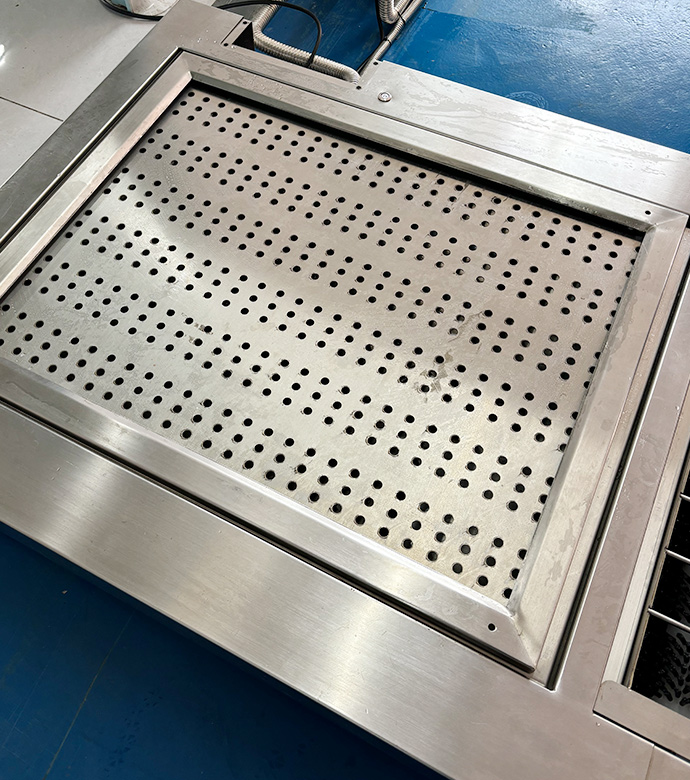

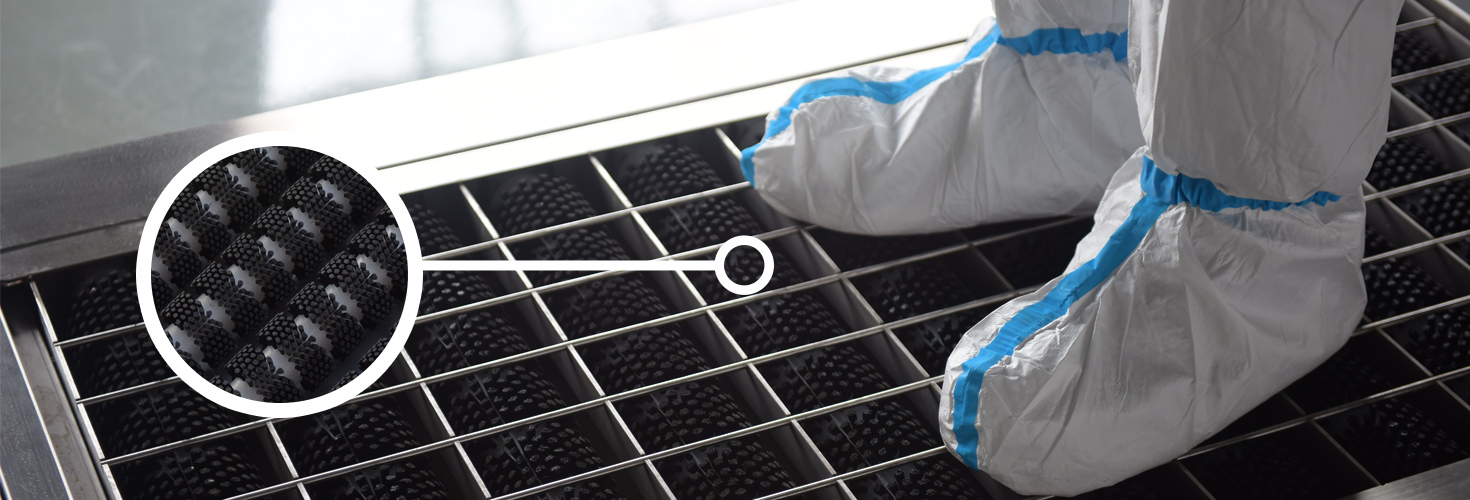

  • Grid water absorbing cover plate

    The water on the absorbent cotton penetrates into the grid cover and is then filtered and discharged.

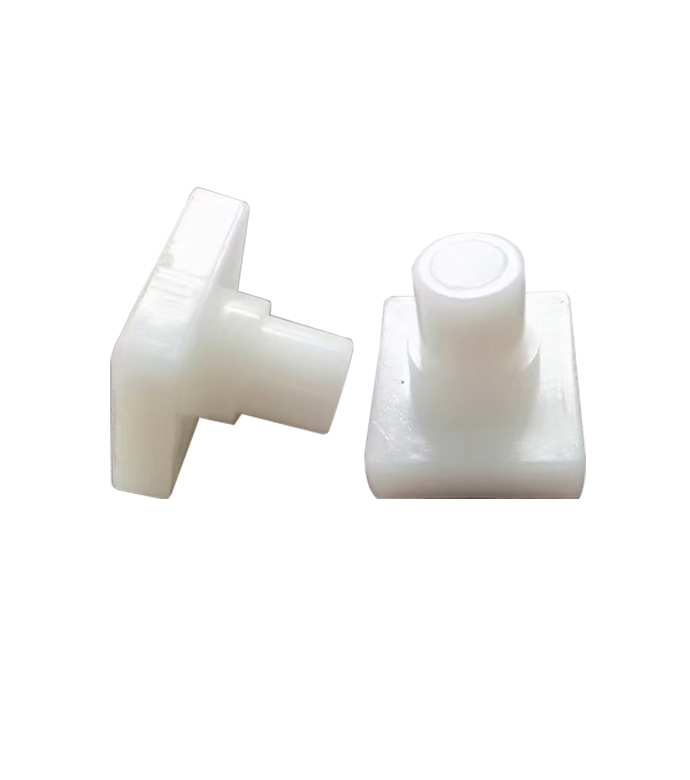

  • Positioning block

    High precision and wear resistance improve work efficiency.

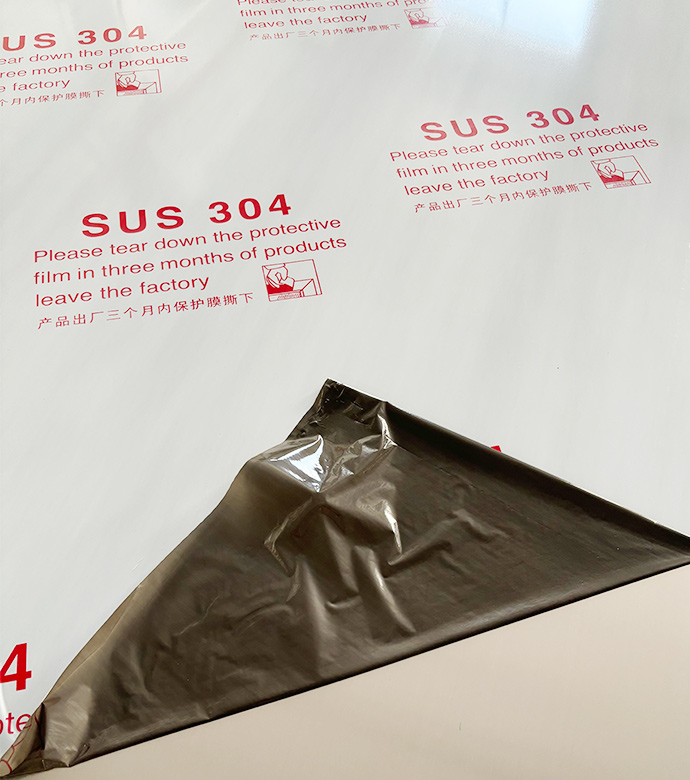

  • 304 stainless steel plate

    Corrosion resistance, good toughness, oxidation resistance, high comprehensive performance.

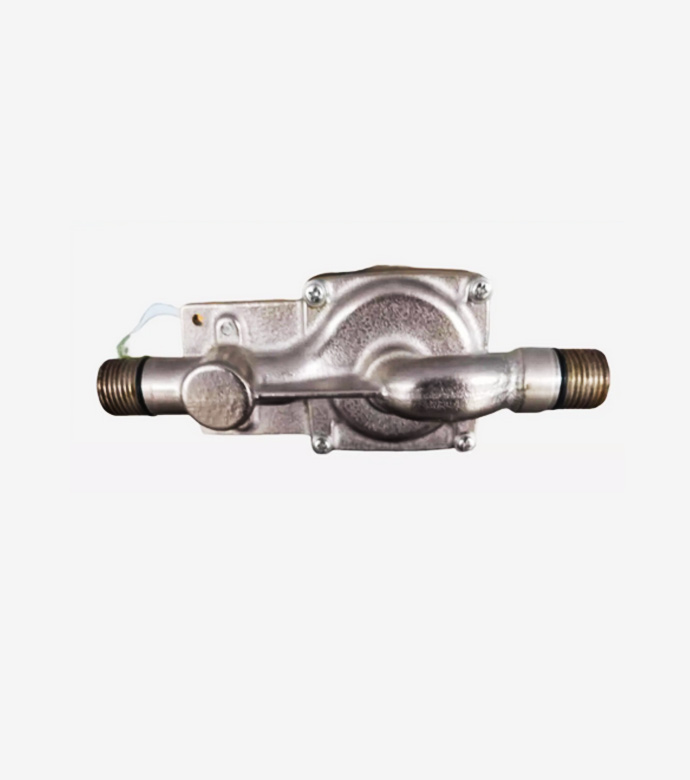

  • Fully automatic booster pump

    Efficient and energy-saving, low-noise operation, faster water absorption speed, completed water absorption and pressurization in seconds.

Shoe Washing Artifact - Suitable for Shoes

The 7mm nylon brush used can be applied to various types of shoes in daily life, and the fully automatic transmission gear is matched with a high-performance motor for 360 ° rotation cleaning

Replace traditional solutions, effectively clean shoe soles, and eliminate pollution.


Deep groove sports shoes
Low heeled shoes
Clean shoes
Big head safety shoes
leather shoes
Rubber shoes
Product parameter

Built-in(washing sole machine)parameters

型号modelST6-850ST6-1350ST6-1850ST6-2350ST6-2850
外形尺寸(mm)850*770*1601350*770*1601850*770*1602350*770*1602850*770*160
Overall dimensions(mm)
吸干区尺寸
530*568555*568675*568795*568
Size of the drying zone
水洗区尺寸
605*5681080*5681460*5681840*568
Wash zone size
PVA吸水垫尺寸
540*530*10540*560*10540*675*10540*800*10
PVA absorbent pad size
启动工作方式 Startup mode人体感应
Human body induction
水箱容积  Tank volume10L20L20L20L30L
换水方式手自一体
Water change modeManual automatic integration
沉淀物清洗方式//增压泵增压泵增压泵
Sediment cleaning methodbooster pumpbooster pumpbooster pump
电机功率  Motor power200w200W200W200W200W
水泵功率  Pump power140w140W140W140W140W
设备总功率750w750W850W850W850W
Total power of equipment
安全防护过载/漏电保护
Safety protectionOverload/eakage protection
控制系统PLC集成控制
Control systemPLC integrated control
主体材质SUS304  1.5mm、2.5mm、3.0mm
Body material
设备供电220V50Hz220V50Hz220V50Hz220V50Hz220V50Hz
Equipment power supply


External (washing sole machine)parameters

型号modelST6-1000ST6-1500ST6-2000ST6-2500ST6-3000
外形尺寸(mm)1000*770*1601500*770*1602000*770*1602500*770*1603000*770*160
Overall dimensions(mm)
吸干区尺寸465*568585*568610*568730*568945*568
Size of the drying zone
水洗区尺寸  Wash zone sze320*568700*5681175*5681555*5681840*568
PVA吸水垫尺寸540*465*10540*585*10540*610*10540*730*10540*945*10
PVA absorbent pad size
启动工作方式 Startup mode
人体感应
Human body induction
水箱容积 Tank volume10L20L20L20L30L
换水方式
手自一体
Water change modeManual automatic integration
沉淀物清洗方式//增压泵增压泵增压泵
Sediment cleaning methodbooster pumpbooster pumpbooster pump
电机功率  Motor power200w200W200W200W200W
水泵功率  Pump power140w140W140W140W140W
设备总功率750w750W850W850W850W
Total power of equipment
安全防护过载/漏电保护
Safety protectionOverload/leakage protection
控制系统PLC集成控制
Control system
主体材质SUS304  1.5mm、2.5mm、3.0mm
Body material
设备供电220V50Hz220V50Hz220V50Hz220V50Hz220V50Hz
Equipment power supply



Accessories and consumables

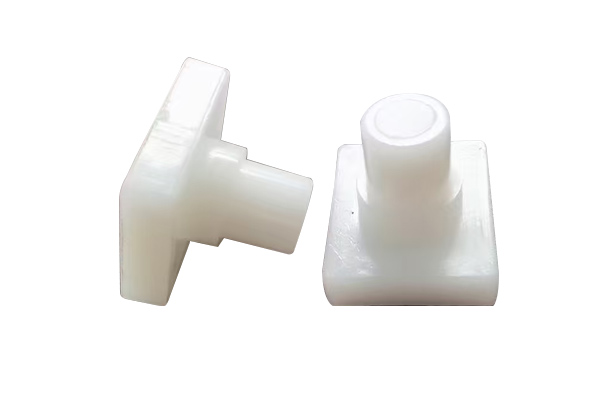

Positioning block
Roller brush

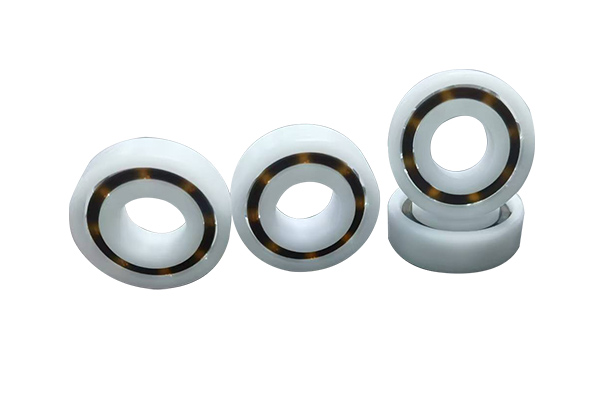

bearing

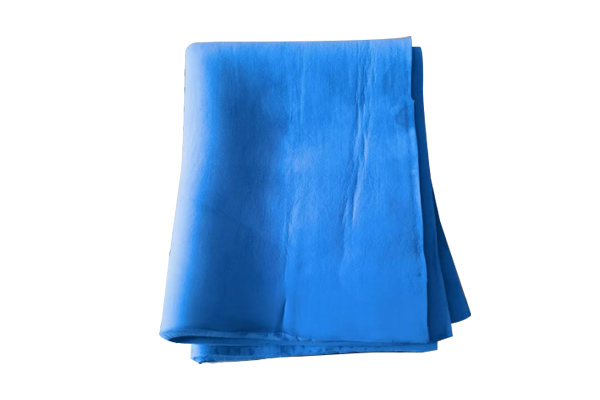

Absorbent Pad
